Industrial Joystick Controller
Typically used in cranes, construction equipment, agricultural equipment, mining equipment. Installed on operating mechanism or pilot operated valves.
Description
Industrial Joystick Handle with Buttons On The Side
The palm grip SA has different equipment options for many requirements.It is compatible with our Multi-axis controller or mounted on your Hydraulic drives,but attention please,we don't offer hydraulic parts.The mounting piece for the drive rod can be supplied with a tapped hole 12 mm (standard) or 10 mm.
Product Features
● Ergonomic design, good handle feel ● Using Nylon makes components durable ● Various panel options ● One side switch is an option ● Dead man switch is available |  |
Application
Typically used in cranes, construction equipment, agricultural equipment, mining equipment. Installed on operating mechanism or pilot operated valves.
Environmental Data
Operating temperature: -40℃ to +85℃
Degree protection: Control element up to IP65(Above the installation panel)
Interface Information
● 0.5mm 2 wire with number, 0.2mm 2 colorful high-temperature wire; Normally, directly outlet without terminal.
● The wire length and determination, please refer to the attachment.
● M12 female mechanical interface.
● Please connect with the technical leader for special requirements.
Tips:
Confirm your configuration from the item 1 to item 5 one by one.
Confirm the type of electrical connector, direct wire out, AMP connector, Deutsch connector(How many pins).
Confirm the size of the mechanical installation connection (M8, M10, M12, M14?)
If you choose the panel with thumb wheel or rocker switch,please confirm the position of the thumb wheel and rocker switch.
Our default button is red, you can also choose green, yellow, blue, please let us know when selecting.
It is available to choose at most 5 buttons on the panel, only 1 button available on left or right side,no button on the back.
Technical Information
 |  |

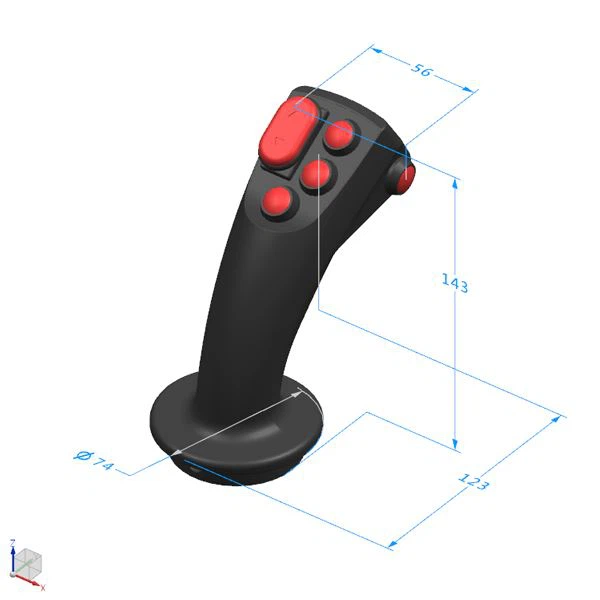

| Side View | Front View |

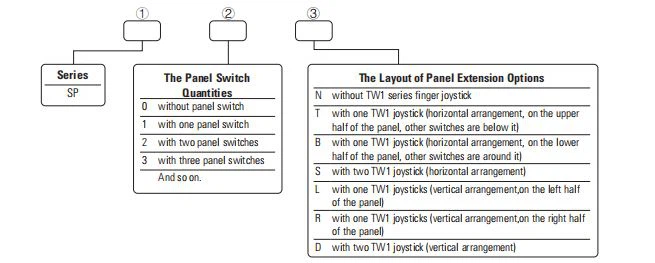

Product Configuration

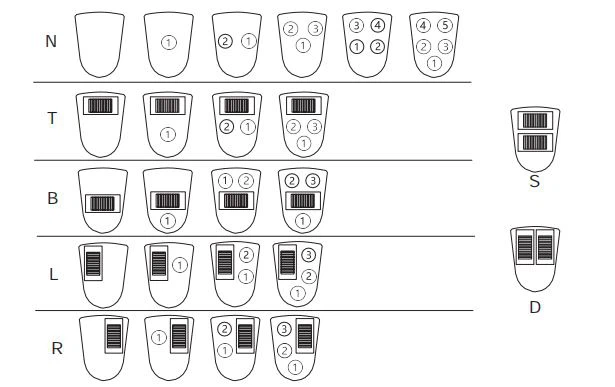

Panel Layout
Note: Panel can be customized.
CGEC: Your Leading Industrial Joystick Controller Manufacturers in China

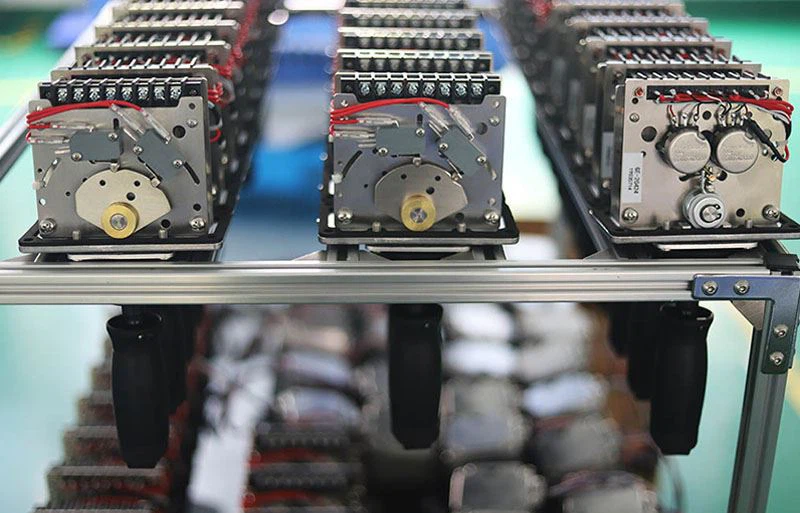

We are the first industrial joystick controller manufacturer in China with 20+ years experience, we provide the ultimate choice in standard and customized industrial joysticks from 'fingertip' to rugged 'full hand grip' models,from "full joystick" to "handle grip".We provide a wide range of industrial joystick controllers that can be used in a variety of different applications. From precise dynamic positioning of medical equipment to valve control of heavy construction machinery. We provide joysticks with 1-axis, 2- axis or multiple axis (3 axis or more).
CGEC Industrial Joysticks for Different Application
1. CGEC's HJ60 series grip handles are widely used in complex electro-hydraulic control of agricultural machinery. The products are stable and reliable. Usually be used in harsh environments. You can choose different grips with buttons,deadman switches, thumb wheels and rocker switches. Output signal can be adapted to the wishes of the customer; from Analog to CAN-bus or J1939.
2. CGEC'S HJ8, HJ28, HJ30, HJ70, HJ76 series are used in aerial work platform, tunnel construction machinery and other construction equipment.
3. CGEC's FJ1, FJ120, FJ3, FJ100, FJ130, FJ9S are used on remote control, CCTV control and drone control.
4. CGEC's HJ80, HJ86, HJ87 are used on heavy equipment, include excavator, crane, Loader etc.
Industrial Joystick Controller: The Helpful Guide for Importers
■ How to Choose a Right Joystick?
■ How Do You Troubleshoot Industrial Joystick Controller?
■ How do we get industrial joystick controller samples?
■ What is the delivery time for this industrial joystick controller?
■ What is your payment term for the industrial joystick controller?
■ Are you industrial joystick controller trade company or manufacturer?
■ How to achieve free maintenance for full life?
■ Is there a user guide for the customized industrial joystick controller?
■ How many industrial joystick controller do you produce every month?
■ What is Industrial Joystick Controller?
■ What is an industrial joystick for?
■ How Many Types Of Industrial Joystick Controller Are There?
■ How Does An Industrial Joystick Work?
■ What Are The Advantages Of Industrial Joysticks?
■ Where To Use The Hand Operated Joystick?
■ Basic Structure Of Industrial Joystick
■ Industrial Joysticks Spring Failure Analysis
■ Common Problems Of Industrial Joystick Controller
■ Advice For Purchasing A Joystick
■ Classification Of Industrial Joysticks And Typical Applications
■ Common Structures Of Industrial Joystick Infrastructure Articles
■ Industrial Operating Joystick Potentiometer Principle
■ What Are The Advantages Of Electronically Controlled Industrial Joysticks?
■ Detailed Description Of The Principle Of Industrial Control Joystick Potentiometer
■ CGEC forklift electrical joystick introduction
■ HJ70 Series Industrial Joystick Controller Are Widely Used in Mobile Elevated Work Platforms
■ Industrial Single Axis Joystick Applied To Fruit Picking Machine Control
■ Brief Introduction Of Friction Joystick Structure And Analysis Of Failure Reasons
■ Actively Explore Application Areas-HJ90 Series Gearbox Electric Control Joystick
How to Choose a Right Joystick?
1. Classified by product function:
● Single axis: Control the actions of an actuator
● Daul-axis: Control the actions of two actuators
● axis: Control the actions of three or more institutions
2. Classification by output signal:
● Hall voltage output: set between 0~5V;
● Potentiometer output: Customers set the output according to their own system requirements;
● Voltage/current output: specify the input voltage (wide voltage input) output voltage or current;
● CAN bus output: transmit data signals through the bus interface.
Operating Environment - What is the environment that the joystick will be in and what is the required Ingress Protection (IP) code?
Life Expectancy - How long does the joystick need to be in operation and how does that compare with the life of the machinery or equipment it will be operating?
Project Budget - How much of the project budget can be allocated to selecting a high performing industrial electric joystick? How will this investment both improve operational performance and prevent maintenance and replacement costs down the road?
While these are only a few of the factors that your team should be considering when selecting a hall effect or potentiometer joystick, they are good to keep at the top of your mind. Where needed, additional joystick programming and engineering can be handled by CGEC.
Consult CGEC to Choose the Right Industrial Electric Joysticks
When navigating the landscape of industrial joysticks, it's important to explore the full range of functions and capabilities that each has to offer. Multi-function industrial joysticks can be customized for your company's specific applications and projects. When working with potentiometer and hall effect joysticks, CGEC selects the appropriate resistance levels and handle deflection based on your team's specifications. Additional accessories can be incorporated into the design for seamless operation and optimal performance.
If you want to choose AWP replaced joystick and forklift replaced joystick,please check our catalog and find the part number you need or show your part number to our e-mail box. We will reply you soon.
How Do You Troubleshoot Industrial Joystick Controller?
In the production process, the next process will inspect the previous process. After the joysticks are completed, the operator will conduct a comprehensive inspection of the industrial joystick controller and then hand it over to the quality inspection department. The quality inspection department will compete to develop different inspection software for different types of products. From Jan 1st, 2020, our company promises to enjoy free full life maintenance service for all products.
The company is equipped with a sophisticated internal laboratory where the analysts can perform various quality tests on all CGEC joysticks, including:
● Fatigue test
● High and low temperature test
● Vibration test
● water-proof test
● Destruction test
● Spring force test
● Push and pull test
● Other tests
If customers require EMC testing, Rohs testing, salt spray testing, etc., we can also entrust it to the testing organization.
Waterproof testing
Dustproof testing
Fatigue test
How do we get industrial joystick controller samples?
We could offer the free samples with shipping fee, but you need pay for the sample before shipping, then we will return the sample fee in your first order.
What is the delivery time for this industrial joystick controller?
For the industrial joystick controller, We always prepare some stocks to ensure that the customer's equipment is in urgent need of replacement joysticks, and we can arrange delivery on the same day.If it is used as a replacement for after-sales maintenance, you can find the corresponding part number in the catalog, and it can be used after installation. For the customized joysticks, generally it will takes 2 weeks to finish product. If the customer needs industrial joystick controller urgently, we can follow the customer to deliver the goods in the fastest time. Speed, Accuracy, Quality!
What is your payment term for the industrial joystick controller?
● Payment≤1000USD, 100% in advance.
● Payment≥1000USD, 30% in advance, 70%balance before shipping.
If you have any other question, please feel free to contact us wangyi@halljoystick.com
Are you industrial joystick controller trade company or manufacturer?
We are industrial joystick controller manufacturer with 20+ years experience.
How to achieve free maintenance for full life?
If you are user, you can ship back to factory, after inspection and repair, send it back to the customer and provide a repair report. If you are dealer, we offer you free parts or ship back to repair. We can also provide exchange service.
Is there a user guide for the customized industrial joystick controller?
Yes, we offer the instruction of the customize industrial joystick controller. If need, we can offer video or online guidance.
How many industrial joystick controller do you produce every month?
We can produce more than 20000 pieces every month. Our company is growing, if you have greater demand, we can also increase production capacity in a short time.
What is Industrial Joystick Controller?
The electronic control joystick is the executor of actions or instructions, and transmits the commands of the device's brain.
● Used in various electromechanical equipment.
● Convert the hand movement into electrical signal output.
● Control the direction, speed, and state of equipment operation.
● Human-computer interaction components.
What is an industrial joystick for?
Industrial joystick - refers to the electrical device that converts the signal sent by the human hand into an electrical signal through this "joystick".
In order to dispose of heavy or large objects that cannot be operated by humans, people have invented many mechanical equipment, such as: cranes, excavators, road rollers, loaders, aerial work vehicles and other mechanical equipment. The operators of these devices are still people. When the human controls the equipment, the machine must issue instructions to the mechanical equipment. The device that sends the instructions is the joystick, which we also call the "electric control handle".
How Many Types Of Industrial Joystick Controller Are There?
Hall Effect vs Potentiometer Joysticks
As the need for joysticks increases designers are undergoing greater pressure to achieve use requirements while also cutting down cost. These requirements include but are not limited to sensitivity, accuracy, low power, smoother operation, custom install size, and multi-function features. It is particularly important in industrial environments where proper control of heavy equipment is critical to prevent work related injuries or loss of productivity.
CGEC has custom developed several types of industrial electric joysticks to serve Original Equipment Manufacturers (OEMs) and operators across industrial, commercial, and consumer environments. When focusing on industrial applications, joysticks for machines and equipment play a crucial role. For this reason, it's important to be familiar with two of the leading types of industrial joysticks: hall effect joysticks and potentiometer joysticks.
How Does An Industrial Joystick Work?
CGEC has custom developed several types of industrial electric joysticks to serve Original Equipment Manufacturers (OEMs) and operators across industrial, commercial, and consumer environments. When focusing on industrial applications, joysticks for machines and equipment play a crucial role. For this reason, it's important to be familiar with two of the leading types of industrial joysticks: hall effect joysticks and potentiometer joysticks.
Key Considerations for Industrial Electric Joysticks
There are advantages and disadvantages to all types of joysticks. It is important to be aware of the underlying dynamics of both potentiometer and hall effect based joysticks to select the one that is suitable for your specific application.
The electronic control joystick has the following common output signals: potentiometer type, ordinary hall type, with conversion circuit type, CAN bus type, other.
What Are The Advantages Of Industrial Joysticks?
The electronically controlled industrial joystick has the characteristics of reliable operation, fast response time, concise adjustment, adjustable during operation, and strong anti-interference.
Industrial Joystick:
Industrial joysticks are used for starting, stopping, shifting, speed regulation and braking systems of construction machinery motors, and are also suitable for places where other equipment has the same electric drive. Also known as a contactor controller. Because its movement posture and the basic principle of static disconnection are very similar to the contactor. The difference between the two is that the industrial joystick is controlled by a human service and can replace a large number of purpose household appliances, while the contactor has the lure of electromagnetic induction to complete the long-distance practical method of the driver, and the number of circuit breakers is small. The industrial joystick is used for the start, stop, speed change, speed regulation and braking system of asynchronous motors that control the rotors of large, medium and small winding motors in hoisting machinery, and is also suitable for other electric drive places with the same regulations.
Where To Use The Hand Operated Joystick?
The Application of Industrial Hand Operated Joystick Controller
Industrial hand operated joysticks are used to control heavy duty machinery such as cranes, drilling machine, agriculture machines, and construction machines,sometimes the remote control for mining equipment requires hand operated joystick. These robust joysticks have a relatively large install size and higher grip, offer high reliability, smooth operation, and long life expectancy.
Basic Structure Of Industrial Joystick
As a common component of industrial control, industrial joysticks are widely used in construction machinery, logistics handling machinery, medical machinery, video surveillance, aerial work machinery, agricultural machinery and other fields.Its main function is to convert people's mechanical actions into electrical signals to realize human-machine control.
Industrial Joysticks Spring Failure Analysis
The spring is often used in the handle. The spring in the handle is mainly used to reset the rocker, balance the rocker, and provide kinetic energy for the lock rocker or position feel, etc., so the spring is an extremely important part in the handle. Once there is a problem with the spring , which will basically directly lead to the reduction of the corresponding functionality of the handle or even the inability to use it; the two common types of handles are compression springs and torsion springs, as shown in the following figure:
Common Problems Of Industrial Joystick Controller
The quality of the industrial joystick controller will not only affect the work efficiency of the operator, but also have a direct impact on the production safety of the operator. Therefore, it is necessary to understand some common problems of industrial joysticks in daily use and maintenance, so as to eliminate handle faults in time.
Advice For Purchasing A Joystick
Classification of joysticks
Hydraulic joystick and electric control joystick
According to the working principle of the control joystick, it can be roughly divided into two types: hydraulic joystick and electric control joystick.
Classification Of Industrial Joysticks And Typical Applications
As an inseparable part of the control system of construction machinery and an indispensable part of the human-machine interface, industrial handles are now widely used in many fields and branches of domestic construction machinery, agricultural machinery, aerial work platforms, etc.
At present, in industrial use, according to the major classification of control forms, there are roughly three types of industrial joysticks: 1. Mechanical joystick; 2. Hydrauli joystick;3. Electric control joystick.
Common Structures Of Industrial Joystick Infrastructure Articles
As a common component of industrial control, industrial joysticks are widely used in construction machinery, logistics handling machinery, medical machinery, video surveillance, aerial work machinery, agricultural machinery and other fields. Human control of the machine. Its common structures mainly include the following:
One, Rotating structure;
Two, the reset structure;
Third, the analog signal conversion structure...
Industrial Operating Joystick Potentiometer Principle
In the application of industrial operating handles, there are two main output forms used by electronic control handles: potentiometer-type output and Hall-type output.
Hall type is characterized by active, non-contact operation, and the life can be made longer. Not suitable for use in occasions with metal dust.
The potentiometer type is characterized by passive, contact-type operation, and its stability relative to the Hall will be better. Not suitable for particularly frequent operations and equipment that is used a lot...
What Are The Advantages Of Electronically Controlled Industrial Joysticks?
The electronically controlled industrial joystick is a human-computer interaction device used in various electromechanical devices to sense the action of the hand on the handle through a potentiometer or a Hall sensor, and send out corresponding electrical signals to control the direction, speed, and distance of the device. Before the advent of electronically controlled industrial joysticks, there were two other types of joysticks in history...
Detailed Description Of The Principle Of Industrial Control Joystick Potentiometer
Potentiometers used on industrial handles, also known as angular displacement sensors, are more common in the industrial manipulation market. As an independent device on the handle to realize voltage analog output, it converts mechanical displacement or other non-electricity that can be converted into displacement into a change in resistance value that has a certain functional relationship, thereby causing a change in the output voltage; the following is the potential The working principle of the device is explained in detail...
What services do you have?
Help each user to make a industrial joystick application plan, put forward suggestions for using the handle according to the user's use scene, and help reduce costs in the user's joystick application process.
We serve different construction equipment and provide you with comprehensive and systematic electronic control solutions.
CGEC forklift electrical joystick introduction
CGEC has many years of experience in providing electric forklift handles that meet market needs.
● Spring return, dual axis for any direction or cross direction
● Hall or Potentiometer available
● Comfortable operating
● Work Temperature -40℃~ +85℃(As we all know, Forklifts are widely used in cold storage, so the joystick is required to operate flexibly at low temperatures.)...
HJ70 Series Industrial Joystick Controller Are Widely Used in Mobile Elevated Work Platforms
CGEC's HJ70 series joysticks are widely used on aerial device, elevating work platform (EWP), fruit picker, bucket truck or mobile elevating work platform (MEWP), a mechanical device used to provide temporary access for people or equipment to inaccessible areas. HJ70 series handles have been supplied to a manufacturer of aerial work platform control systems for several consecutive years, and have received unanimous praise in the this area. If you want to customize a joystick for your equipment, the below configuration are only for you reference. Feel free to contact us to choose a suitable joystick...
Industrial Single Axis Joystick Applied To Fruit Picking Machine Control
CGEC belong to the most experienced manufacturer for the harsh joystick environment. As a market leader in agricultural, CCTV and other construction machinery applications, we can provide standard models for various applications to meet most needs. The multi-talented engineer team is familiar with OEM special joystick requirements and can customize designs to meet any application. We present different solutions for today's engineering vehicle requirements and provide a series of fully customized joysticks. These industrial electrical joysticks meet or exceed the levels of various industrial joysticks on the market today, such as high and low temperature requirements, waterproof and dustproof requirements, anti-static requirements, etc., with ergonomic design and full reliability...
Brief Introduction Of Friction Joystick Structure And Analysis Of Failure Reasons
In the use environment of the joystick on the construction vehicle, the friction positioning type joystick is often used in the heavy load equipment. Under normal circumstances, the friction type joystick is generally used for continuous acceleration or retreat of the vehicle.
This type of joystick is usually different from the self-resetting joystick, and the life expectancy is not as long as that of the self-resetting joystick. The focus is on the uniformity of the handle friction, the reliability of the friction function, and the resistance under heavy loads. Receptive and so on...
Actively Explore Application Areas-HJ90 Series Gearbox Electric Control Joystick
Industrial electronic control joysticks are mostly used in the functional control of engineering vehicles. For example: the electric control joystick of the aerial work lift is used to control the lifting of the AWP lifts; the electric control joystick of the crane is used to control the rotation of the boom and the position of the hook; the electric control joystick of the excavator is used to control the action of the bucket; and many more. However, the HJ90 series of electronic control handles newly developed by CGEC breaks the tradition and is mainly used in the transmission control of engineering vehicles-that is, to control the driving direction and speed of the vehicle. This is a new application field...
Top 5 Reasons To Buy Electric Made In China
Perhaps now, more than ever, it is an excellent idea to buy China made electric joystick. With the current disruption of the supply chain in west country and the lower quality joystick coming from some European countries, now is the time to buy high quality China made electric joystick. It is important to buy high quality electric joystick to ensure your line runs efficiently, quickly and without downtime due to issues with lower quality joystick. Buying joystick from foreign countries while the supply chain is seeing such disruption can result in months of delays in receiving your order.
Here at Industrial Joystick Manufacture Field, as the first joystick manufacturer in China we have been developing electric joystick for 20+ years. During that time we have developed decades of expertise on electric joystick formulations and applications. In today's article, we will discuss the top 5 reasons to buy China made electric joystick...
