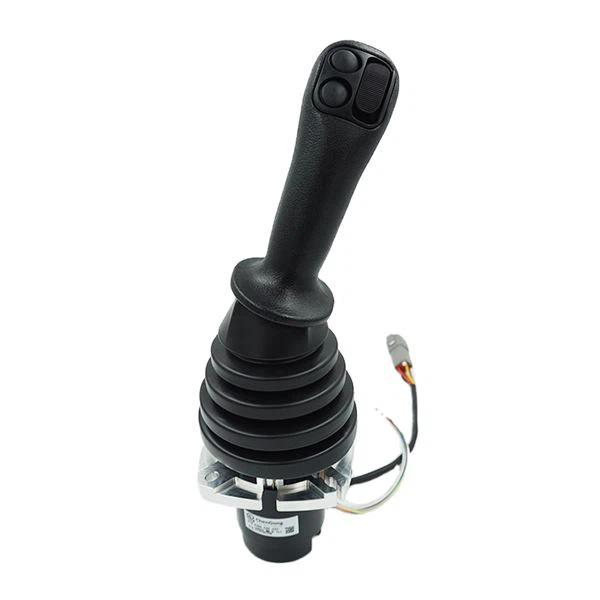

Heavy Equipment Joystick-HJ86 Series
HJ8 6 series Grip type multi-axis operating handle Product Features The heavy-duty handle design is durable and suitable for high-strength operations. Spring automatically resets, single-axis or dual-axis operation. The angle detection device is a Hall sensor with a long service life. Various...
Description
HJ86 series
Grip type multi-axis operating handle
Product Features
The heavy-duty handle design is durable and suitable for high-strength operations.
Spring automatically resets, single-axis or dual-axis operation.
The angle detection device is a Hall sensor with a long service life.
Various output forms are available.
Various upper handles are optional.
Application range
This series of products are mainly used in cranes, loaders, forklifts, excavators, aerial work platforms, tractors, harvesters, etc.
Technical parameters Technical ln formation
Electrical parameters
Hall type
Power supply voltage | 5 ± 0.5Vdc |
Power supply current (rated power supply current) | <11mA (single axis) 22mA (dual axis) |
Limit allowable overvoltage | 20Vdc |
Reverse limit allowable voltage | -10Vdc |
Linear error of output voltage | <± 0.2V |
Mechanical parameters
Rocking angle | ± 20 ° |
Mode of operation | Automatic spring return |
Starting force | 20N |
Maximum operating force | 11N |
Limiting force | > 300N |
Service life | > 2 million times |
Weight | About 660g |
Environmental parameters
Working temperature | -30C ~ + 70 ℃ |
Storage temperature | -40 ℃ ~ + 85 ℃ |
Protection grade | IP65 (above the installation panel) |
Product selection
Series
HJ86
Operation method
1A | Single-axis front-back operation |
2AC | Any operation direction of two axes |
Input voltage
S | 5Vdc (standard voltage |
W | 9 ~ 36Vdc (wide voltage |
Output signal
Hall type (supply voltage 5VDC)
H51 | Single Hall, 0.5 ~ 2.5 ~ 4.5Vdc voltage output |
H52 | Single Hall, 0 ~ 2.5 ~ 5Vdc voltage output |
H53 | Single Hall, 1.25 ~ 2.5 ~ 3.75Vdc voltage output |
J33 | CAN 2.0B bus output, source address is 33, J1939 protocol |
J34 | CAN 2.0B bus output, source address is 34, J1939 protocol |
Grip of joystick
SY /SD /SL
※ Optional S Y /SL/SD series ,accept customize grip
Outgoing way
L (direct outlet)
D (Deutsch connector)
※ The outlet form of other connectors can be customized
Electrical Installations
CANbus output
Pin no | Function |
1 | Power 9~36v |
2 | Power oV |
3 | CAN high |
4 | CAN low |
5 | CAN shield |
6 | N/A |
Hall sensor output definition
Color | Function |
Red | Power 5V input |
Black | GND |
Yellow | Hall output in front and rear direction |
White | Hall output in left and right direction |
Dimensions
Product Installation
FAQ:
Q1: Are you joystick trade company or manufacturer?
A1: We are custom made industrial joystick controllers manufacturer with 20+ years experience.
Q2: How many pcs joystick do you produce every month?
A: We can produce more than 20000 pieces every month. Our company is growing, if you have greater demand, we can also increase production capacity in a short time.
Q3: How to achieve free maintenance for full life?
A3: If you are user, you can ship back to factory, after inspection and repair, send it back to the customer and provide a repair report.If you are dealer, we offer you free parts or ship back to repair. We can also provide exchange service.
Q4: Is there a user guide for the customized products?
A4: Yes, we offer the instruction of the customize joysticks. If need, we can offer video or online guidance. As usual, there is no instruction for the AWP joysticks used for after-sales maintenance, but if you have any questions, we can also answer for you.
Utility patent certificate
Quality certification
About shipping
Generally it will takes 2 weeks to finish product. If the customer needs joysticks urgently, we can follow the customer to deliver the goods in the fastest time.If it is a small batch order, we use express delivery to the door. If you order large quantities, you can choose sea, land or air freight.
Speed, Accuracy, Quality!
Service
We offer full life warranty for all of our joysticks.
