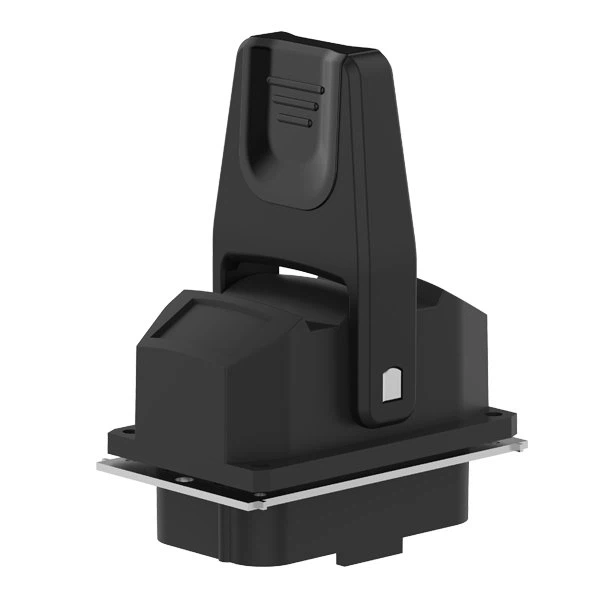

Single Axis Fingertip Joystick - FJ130 Series Industrial Controller

FJ130 series fingertip single axis joystick





Product Features

Fingertip type single-axis handle for front and back operation.

● The spring automatically resets.

● Small size, easy to install.

● Non-contact Hall sensor.

● Reliable structure, no leather case, suitable for various harsh environments.



Application

Industrial Applications for Single Axis Fingertip Joystick:
- Construction equipment control systems
- Industrial machinery operation panels
- Remote control devices for heavy equipment
- Medical device control interfaces
- Automation control panels
- Marine equipment control systems

Why Choose Our Single Axis Fingertip Joystick:
- Non-contact Hall sensor technology for 2M+ cycle life
- Compact 45g design for space-constrained applications
- IP65 protection rating for harsh industrial environments
- Wide voltage range (9-36VDC) for industrial compatibility
- Spring return mechanism for safety-critical applications



Technical Information

Electrical parameters

Power supply voltage 5.0±0.5Vdc (standard voltage)

Power supply voltage 9~36Vdc (wide voltage)

Power supply current <9mA

Maximum allowable voltage 30Vdc

Reverse limit allowable voltage -10Vdc

Load resistance >10KΩ

Median output voltage 2.5±0.1V

Output voltage linearity error <±2%



Mechanical parameters

Shaking angle about ±30°

Operation mode: spring automatic reset

Starting force 1.3N

Maximum operating force 3N

Limiting force >30N

Service life> 2 million times (Hall type)

Weight 45g



Environmental parameters

Working temperature -30℃~+70℃

Storage temperature -40℃~+85℃

Protection grade IP65 (only for the electronic part)



Product configuration

FJ30 series1-axis joystick

Output signal

H51: Hall effect,0.5~2.5~4.5V voltage output

H52: Hall effect,0~2.5~5V voltage output

H53: Hall effect,1.25~2.5~3.75V voltage output

Operating Type

M: Start in the middle

S: Start in lateral position

L: Start position is in the middle position, single side with lock

DL: Start position is in the middle position, dual side with lock



Product installation



Electrical Connection

Direct out

Thread color function

Red input voltage -5V

Black 0V

Yellow output



Dimensions



FAQ:

Q1: Are you joystick trade company or manufacturer?

A1: We are custom made industrial joystick controllers manufacturer with 20+ years experience.



Q2: How many pcs joystick do you produce every month?

A: We can produce more than 20000 pieces every month. Our company is growing, if you have greater demand, we can also increase production capacity in a short time.



Q3: How to achieve free maintenance for full life?

A3: If you are user, you can ship back to factory, after inspection and repair, send it back to the customer and provide a repair report.If you are dealer, we offer you free parts or ship back to repair. We can also provide exchange service.



Q4: Is there a user guide for the customized products?

A4: Yes, we offer the instruction of the customized joysticks. If needed, we can offer video or online guidance. As usual, there is no instruction for the AWP joysticks used for after-sales maintenance, but if you have any questions, we can also answer for you.





Utility patent certificate



Quality certification



About shipping

Generally it will takes 2 weeks to finish product. If the customer needs joysticks urgently, we can follow the customer to deliver the goods in the fastest time.If it is a small batch order, we use express delivery to the door. If you order large quantities, you can choose sea, land or air freight.

Speed, Accuracy, Quality!



Service

We offer full life warranty for all of our joysticks.
